INTRODUCTION

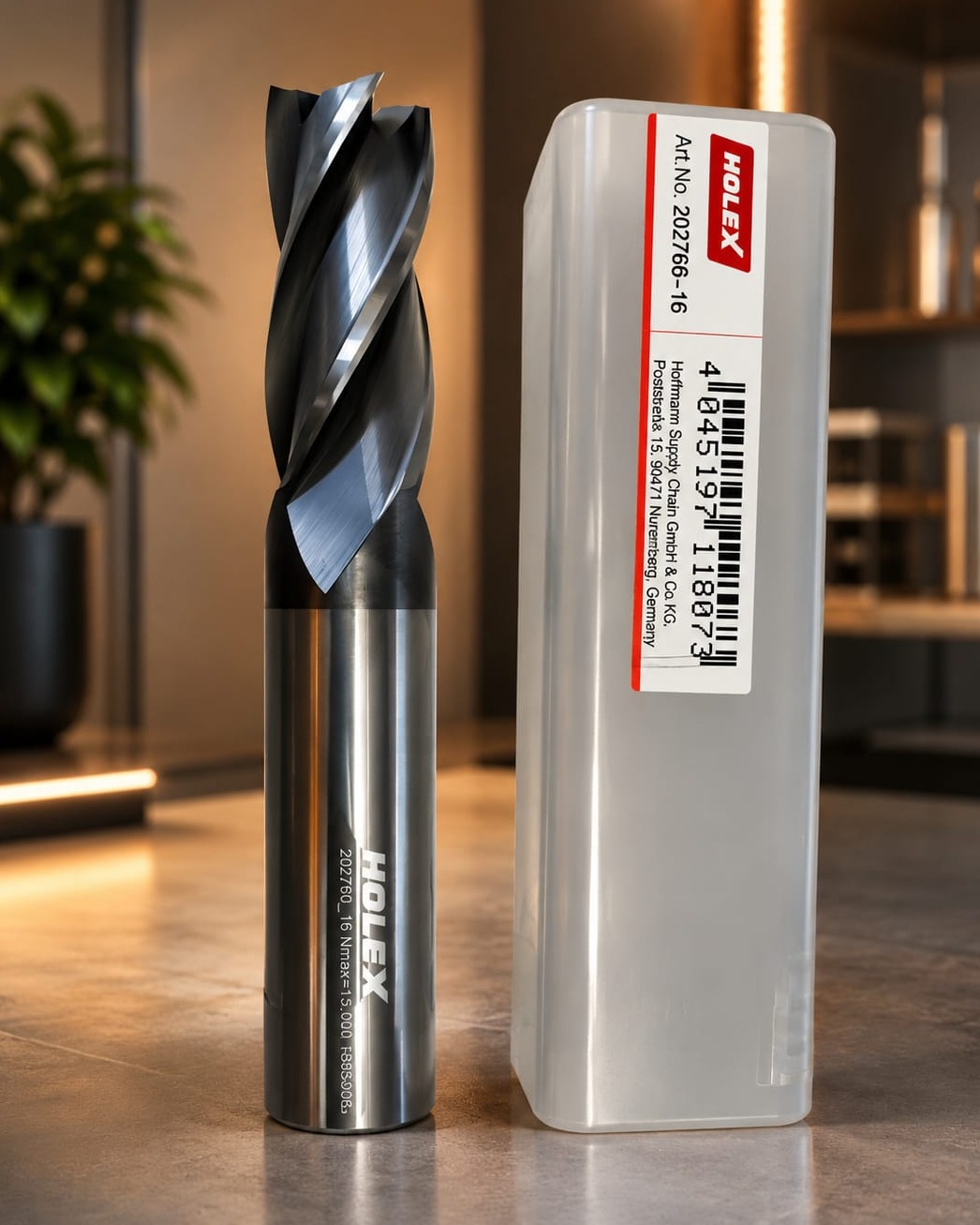

HOLEX 202760 16 ek high-performance solid carbide end mill hai, designed for demanding CNC milling applications. Iska 16 mm cutting diameter, 4-flute geometry aur TiAlN coating ise professional metalworking ke liye ek strong choice banate hain.
🔧 HOLEX 202760 16 – Key Specifications
- Product: HOLEX 202760 16
- Type: Solid Carbide End Mill
- Diameter: Ø16 mm
- Number of Flutes: 4
- Coating: TiAlN
- Helix Angle: 30°
- Flute Length: 35 mm
- Overall Length: 93 mm
- Shank Diameter: 16 mm
- Shank: DIN 6535 HB, h6
- Diameter Tolerance: h10
- Coolant: No internal through-coolant
⚙️ Why Choose HOLEX 202760 16?
1. Solid Carbide Construction
Solid carbide construction provides the rigidity and wear resistance required for demanding milling operations. The tool is designed for professional machining where dimensional accuracy and consistent cutting performance matter.
2. TiAlN Coating
The TiAlN coating is designed to improve tool resistance during machining and is particularly useful in applications where cutting temperatures and tool wear are concerns.
3. Four-Flute Geometry
With 4 cutting edges, the 202760 16 provides a good balance between material removal, cutting stability and surface finish.
4. 30° Helix Angle
The 30° helix geometry supports smooth chip evacuation and stable cutting performance in horizontal, oblique and vertical feed directions.
🏭 Applications
HOLEX 202760 16 is suitable for a wide range of CNC milling operations, including:
- Slot milling
- Side milling
- General contour milling
- Industrial component manufacturing
- CNC machining of steel and other engineering materials
For steel below 900 N/mm², the manufacturer's data lists a feed per tooth of 0.08 mm for slot milling and 0.10 mm for side milling; actual cutting parameters should always be selected according to machine, workpiece material, tool holding and machining conditions.
