INTRODUCTION

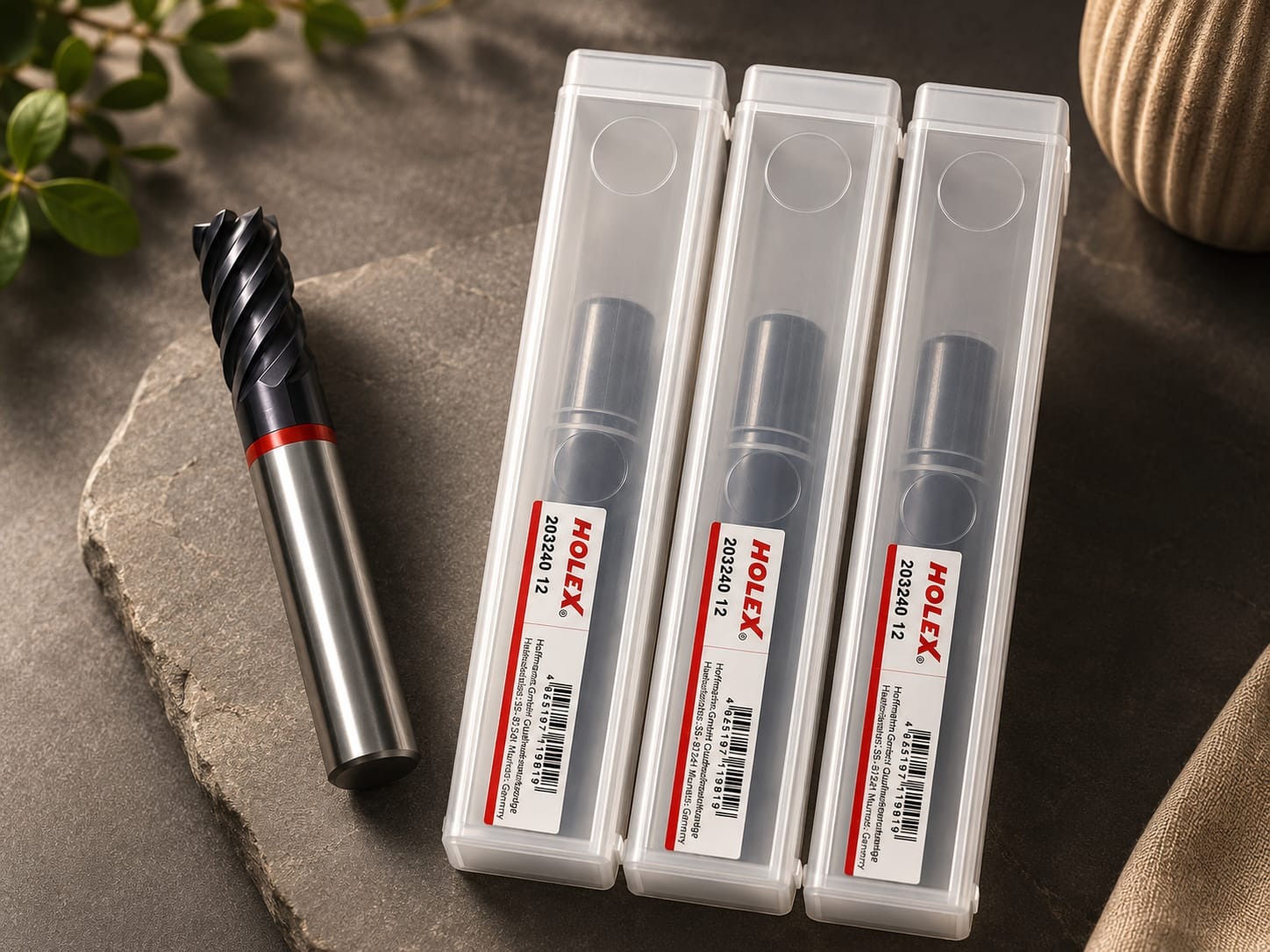

In today's competitive manufacturing industry, achieving high precision and exceptional surface finish is essential. The HOLEX 203240 12 mm Solid Carbide End Mill is engineered to deliver reliable performance, long tool life, and outstanding machining quality. Designed by HOLEX, a trusted brand of Hoffmann Group, this end mill is an excellent choice for professional machinists and CNC workshops.
Why Choose the HOLEX 203240 12 End Mill?
The HOLEX 203240 series is manufactured from premium solid carbide and coated with TiAlN (Titanium Aluminium Nitride) for enhanced wear resistance and heat protection. Its strengthened core and optimized geometry make it suitable for demanding profile milling applications while maintaining excellent dimensional accuracy. The tool features a 50° helix angle and 6 cutting edges, providing smooth chip evacuation and superior surface finishes during machining. It is primarily intended for profile finishing, with plunge cutting recommended only at shallow depths.
Key Features
- 12 mm Solid Carbide End Mill
- Premium TiAlN coating for extended tool life
- 6-flute design for stable and smooth cutting
- 50° helix angle for efficient chip evacuation
- High rigidity with strengthened core
- Excellent wear and heat resistance
- Suitable for dry and wet machining
- Designed for precision profile milling and finishing
- DIN 6535 HA shank for secure tool holding
- Ideal for CNC milling machines and machining centers
Technical Specifications
- Product Code: HOLEX 203240 12
- Tool Material: Solid Carbide
- Diameter: 12 mm
- Coating: TiAlN
- Number of Flutes: 6
- Helix Angle: 50°
- Overall Length: 83 mm
- Flute Length: 26 mm
- Shank Diameter: 12 mm
- Tolerance: h10
- Application: Profile milling and finishing operations
Applications
The HOLEX 203240 12 mm End Mill is suitable for machining:
- Alloy Steel
- Hardened Steel (up to approximately 55 HRC for recommended applications)
- Tool Steel
- Carbon Steel
- Die and Mold Components
- Precision Engineering Parts
- Automotive Components
- Aerospace Components
- General CNC Manufacturing
Performance Benefits
Exceptional Surface Finish
The optimized cutting geometry minimizes vibration, producing smooth and accurate machined surfaces.
Longer Tool Life
The TiAlN coating protects against heat and abrasion, significantly increasing tool durability.
Higher Productivity
The 6-flute design allows higher feed rates during finishing operations while maintaining machining stability.
Excellent Accuracy
Manufactured to strict quality standards, the tool ensures consistent dimensional precision throughout production.
